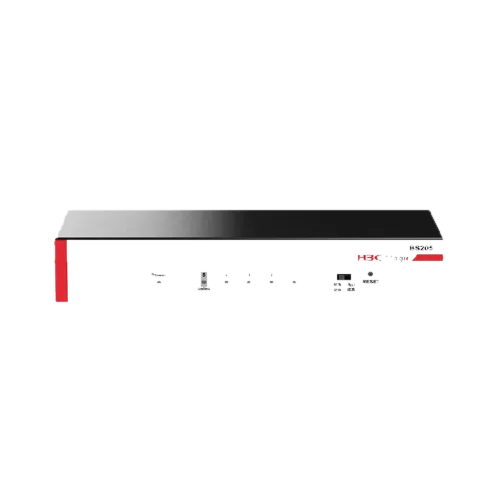

The H3C Magic BS205T is a simple way to add wired Gigabit ports to a desk, a home office or a small shop. It needs no configuration: plug in the power adapter and the cables and it starts forwarding.
• 5 x 10/100/1000BASE-T Ethernet ports • 10 Gbps switching capacity and 7.4 Mpps forwarding rate • 2K MAC address table and 1 Mbit packet buffer • Store-and-forward switching
A mode switch lets you choose between standard switching and port isolation, which keeps the downstream ports from talking to each other, useful for guest devices or cameras.
The housing is just 155 x 58 x 27 mm and runs from a 12 V / 0.5 A DC adapter.
Shipping is charged by the number of items in your order, at the same rates for every destination, and the exact amount is shown at checkout before you pay. Orders ship within 1 business day.
Not happy? Return it within 30 days for a full refund, even if opened.
| Ports | |
|---|---|
| Fixed ports | 5 x 10/100/1000BASE-T |
| Performance | |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.4 Mpps |
| MAC address table | 2K |
| Packet buffer | 1 Mbit |
| Features | |
| Switching mode | Store-and-forward |
| Operating modes | Standard switching / port isolation |
| Power | |
| Power input | 12 V / 0.5 A DC adapter |
| Physical | |
| Dimensions (W x D x H) | 155 x 58 x 27 mm |
