Lenovo ThinkSystem DB710S Gen 7 64G Fibre Channel SAN Switch
by
Entry 1U Gen 7 Fibre Channel switch: 8 ports at base, scalable to 24 x 64G SFP+ ports, 1.536 Tbps, lifetime hardware warranty.
$9,683.10
SKU 7DHNA004NA · 30-day returns

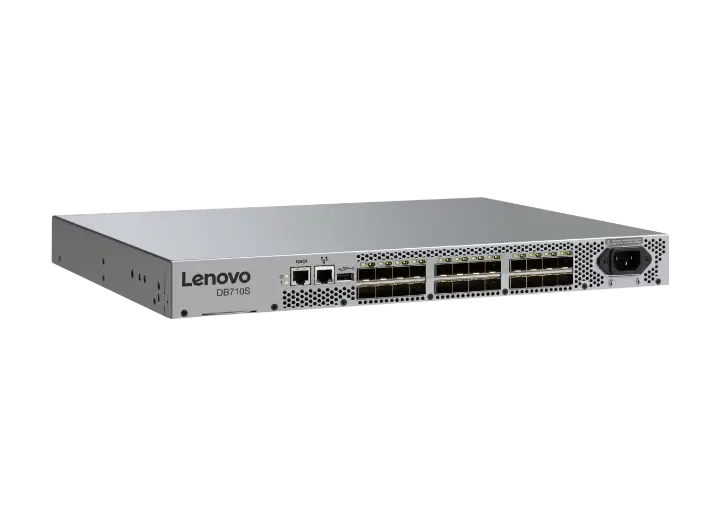

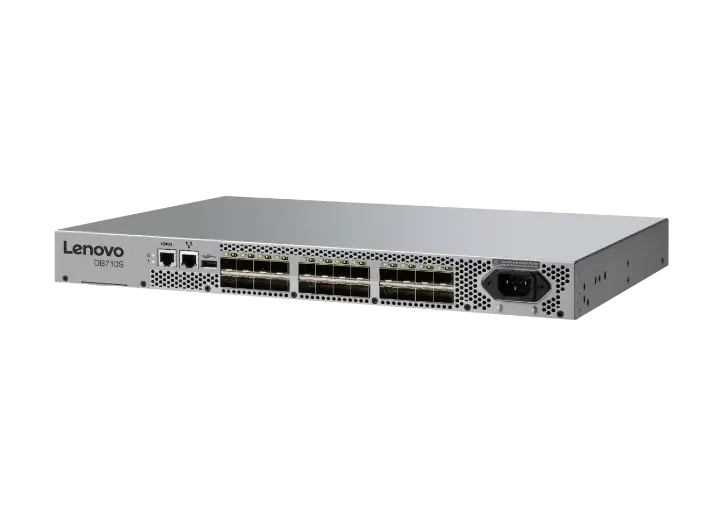

The ThinkSystem DB710S is a compact 1U Fibre Channel switch that gives small and mid-sized storage networks access to Gen 7 (64G) technology. It is built on Brocade hardware and runs Brocade Fabric OS.
The switch starts with eight active ports and grows in 8-port Ports on Demand steps to a full 24 ports, so you only license what you use today. Every port auto-negotiates 8, 16, 32 or 64 Gbps, letting new all-flash and NVMe arrays share a fabric with older 16G and 32G equipment.
• 24 SFP+ ports, 1.536 Tbps aggregate bandwidth • About 460 ns latency for locally switched ports • Full-fabric mode or Brocade Access Gateway (NPIV) mode • Management via Web Tools, CLI, REST API, SNMP and SANnav • Single integrated power supply, maximum draw around 105 W
Lenovo includes a lifetime hardware warranty and lifetime firmware entitlement for this machine type, which keeps long-term ownership costs predictable.
Shipping is charged by the number of items in your order, at the same rates for every destination, and the exact amount is shown at checkout before you pay. Orders ship within 1 business day.
Not happy? Return it within 30 days for a full refund, even if opened.
Specifications
| Part number | 7DHNA004NA |
|---|---|
| Ports | |
| Fibre Channel ports | Up to 24x SFP+ (Gen 7) |
| Port licensing | 8-port base; expands to 24 ports with two 8-port Ports on Demand upgrades |
| Performance | |
| Port speeds | 8, 16, 32 and 64 Gbps auto-sensing |
| Aggregate bandwidth | 1.536 Tbps |
| Latency | About 460 ns (locally switched ports, with FEC) |
| Features | |
| Operating modes | Full-fabric switch or Brocade Access Gateway (NPIV) |
| Management | |
| Interfaces | Web Tools, SANnav, CLI, REST API, SNMP v1/v3, SSH; 1x RJ-45 GbE mgmt, RJ-45 serial, USB |
| Power | |
| Power supply | Single integrated PSU, 100-240 V AC; max 105 W |
| Physical | |
| Form factor | 1U rack, back-to-front airflow |
| Dimensions (W x H x D) | 428.8 x 42.9 x 306.6 mm |
| Weight | 4.84 kg with transceivers (4.24 kg without) |
| Warranty | Lifetime limited hardware warranty (CRU, 9x5 next-business-day parts delivery) plus lifetime Fabric OS firmware entitlement, per Lenovo for machine type 7DHN |
