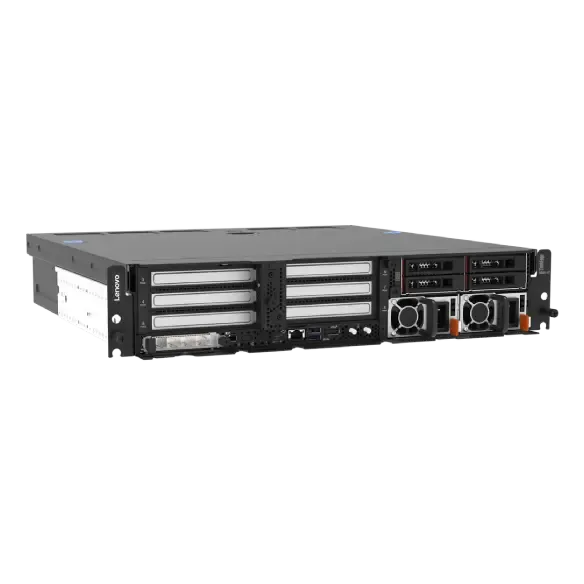

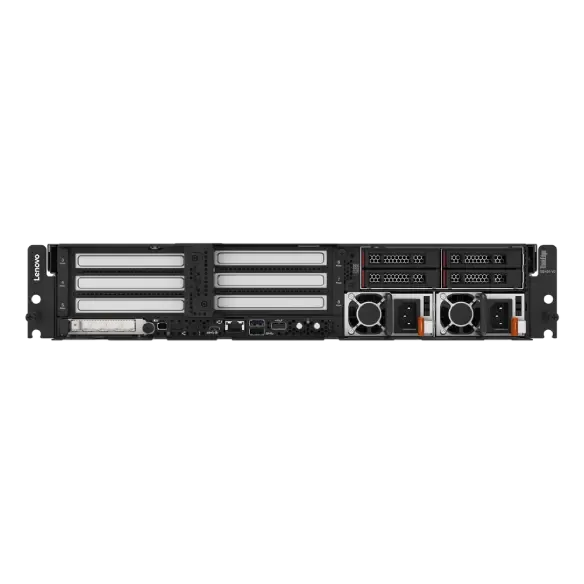

The ThinkEdge SE455 V3 is built for places that are not data centres: factory floors, retail stores, telecom sites and branch closets. Its chassis is only about 440 mm deep, mounts in two-post or four-post racks, and keeps its I/O ports and PCIe slots at the front for easy access.
This model runs a 16-core AMD EPYC 8124P (2.45 GHz, 125 W) from the power-efficient EPYC 8004 family, with 32 GB of TruDDR5 memory installed and six DIMM slots for up to 768 GB.
• Up to four front-accessible 2.5-inch hot-swap SSDs (SATA or NVMe) • Up to six PCIe slots, including two PCIe 5.0 x16 slots that accept double-wide GPUs for AI inference • OCP 3.0 slot for 1 to 100 GbE networking • Hot-swap 1100 W 80 PLUS Platinum power supply • XClarity Controller 2 for remote management of unattended sites
A compact way to run virtualised applications, video analytics or local AI right where data is generated.
Shipping is charged by the number of items in your order, at the same rates for every destination, and the exact amount is shown at checkout before you pay. Orders ship within 1 business day.
Not happy? Return it within 30 days for a full refund, even if opened.
| Part number | 7DBYA00QNA |
|---|---|
| Processor | |
| CPU | 1x AMD EPYC 8124P, 16 cores, 2.45 GHz, 125 W |
| Memory | |
| Installed | 32 GB TruDDR5 RDIMM (1Rx4) |
| Maximum | 768 GB (6 DIMM slots) |
| Storage | |
| Drive bays | Up to 4x 2.5-inch hot-swap SSD (SATA or NVMe), front accessible |
| Networking | |
| Network slot | 1x OCP 3.0 (PCIe 5.0 x16), 1-100 GbE adapters |
| Expansion | |
| PCIe slots | Up to 6 (2x PCIe 5.0 x16, 4x PCIe 4.0 x8) |
| Management | |
| Controller | Lenovo XClarity Controller 2 (XCC2) |
| Power | |
| Power supply | 1x ThinkEdge 1100 W 80 PLUS Platinum hot-swap |
| Physical | |
| Form factor | 2U short-depth rack (2-post or 4-post) |
| Dimensions (W x H x D) | 445 x 87 x 440 mm |
| Weight | Up to 19.21 kg (maximum configuration) |
| Warranty | 3-year customer-replaceable unit (CRU) and on-site limited warranty, 9x5 next business day (as listed by Lenovo US for this model) |
