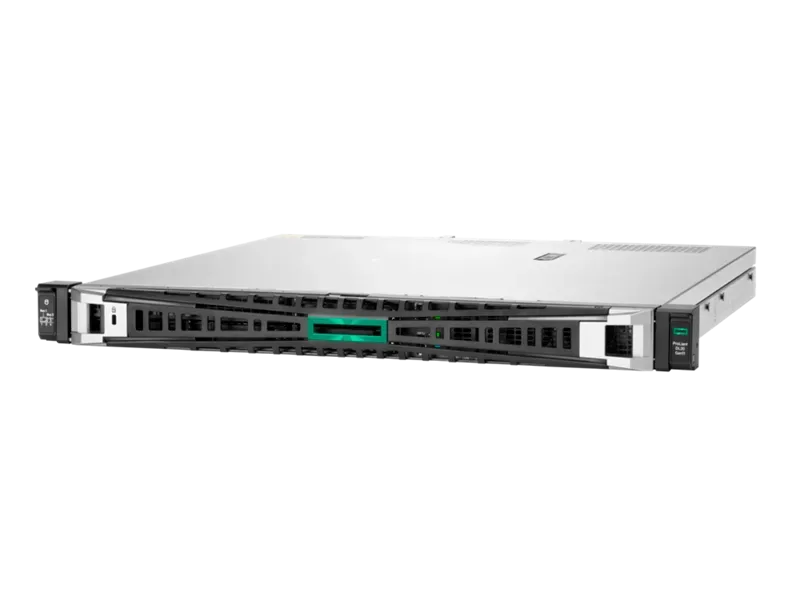

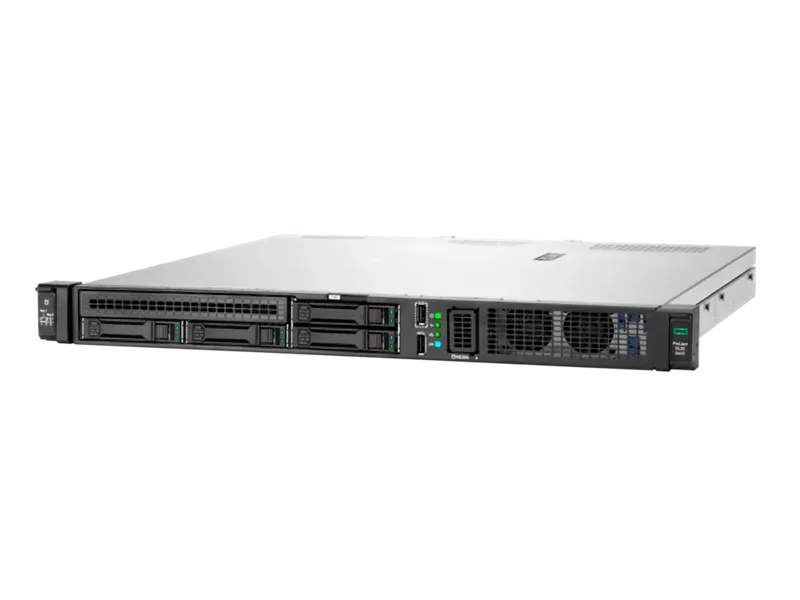

HPE ProLiant DL20 Gen11 1U Rack Server (Xeon 6315P, 16 GB, 2 x 1 TB HDD)
by
Compact, short-depth 1U single-socket server with a Xeon 6315P, 16 GB DDR5 and two 1 TB drives for branch and SMB duties.
$3,314.00
SKU P83278-005 · 30-day returns
The HPE ProLiant DL20 Gen11 is an entry-level, single-socket 1U server with a depth of only 15 inches, so it fits in shallow racks, network closets and branch offices. It suits file and print, small databases, edge applications or a dedicated security appliance.
• Intel Xeon 6315P: 4 cores, 2.8 GHz base with up to 5.2 GHz boost, 55 W TDP • 16 GB DDR5 unbuffered memory; four DIMM slots allow up to 128 GB • Two 3.5-inch non-hot-plug bays fitted with 1 TB 7.2K SATA hard drives • Embedded Intel VROC SATA software RAID (0, 1, 5, 10) • 290 W Platinum power supply and three high-performance fans
A PCIe 5.0 x16 slot and an OCP 3.0 slot leave room for networking or storage upgrades. HPE iLO provides out-of-band management, a TPM 2.0 module is installed, and the server carries a 3/3/3 onsite warranty.
Shipping is charged by the number of items in your order, at the same rates for every destination, and the exact amount is shown at checkout before you pay. Orders ship within 1 business day.
Not happy? Return it within 30 days for a full refund, even if opened.
Specifications
| Part number | P83278-005 |
|---|---|
| Processor | |
| CPU | 1 x Intel Xeon 6315P, 4 cores, 2.8 GHz (up to 5.2 GHz), 12 MB cache, 55 W |
| Memory | |
| Installed memory | 16 GB (1 x 16 GB) DDR5 unbuffered (UDIMM) |
| Memory slots / maximum | 4 DIMM slots / up to 128 GB |
| Storage | |
| Storage controller | Embedded Intel VROC SATA software RAID (0/1/5/10) |
| Drives installed | 2 x 1 TB SATA 6G 7.2K LFF HDD |
| Drive bays | 2 x LFF (3.5 in) non-hot-plug |
| Ports | |
| Expansion slots | 1 x PCIe 5.0 x16, 1 x OCP 3.0 |
| Power | |
| Power supply | 1 x 290 W, 80 PLUS Platinum |
| Management | |
| Remote management | HPE iLO; TPM 2.0 |
| Physical | |
| Form factor | 1U rack, short depth |
| Dimensions | 1.7 x 17.1 x 15 in (4.3 x 43.4 x 38.1 cm, H x W x D) |
| Warranty | 3 years parts, 3 years labour, 3 years onsite next business day (HPE 3/3/3) |
