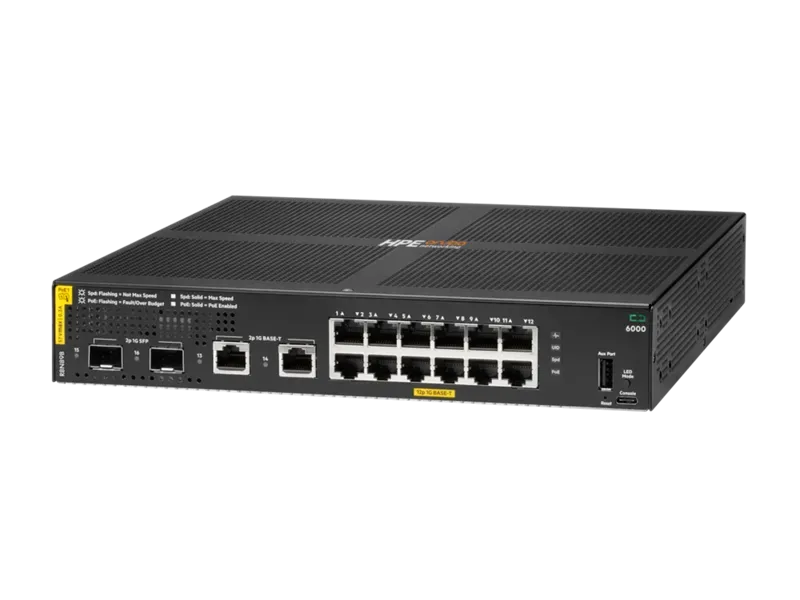

HPE Aruba Networking CX 6000 12-Port PoE+ Compact Switch, 139 W (R8N89B)

Small business · Enterprise network · Rack-mount

HPE Aruba Networking CX 6000 12-Port PoE+ Compact Switch, 139 W (R8N89B)

by

Compact 12-port Gigabit PoE+ switch with 139 W budget and 1G SFP uplinks; mounts in a rack or on a wall.

$869.99
In stock

SKU R8N89B · 30-day returns

The HPE Aruba Networking CX 6000 12G Class4 PoE 2SFP 139W is a small, 10-inch-wide managed switch for places where a full-size rack switch would be too big: small offices, retail counters, classrooms and ceiling or wall enclosures.

• 12 x 10/100/1000BASE-T Class 4 PoE+ ports with a 139 W power budget • Gigabit SFP uplink ports for fiber connections to the rest of the network • 32 Gbps switching capacity, 23.8 Mpps, 12.38 MB packet buffer • 8,192 MAC entries and up to 512 IPv4 / 512 IPv6 routes • USB-C console and USB-A ports; RADIUS, TACACS+ and SSH

Because it runs the same AOS-CX software as larger CX switches, policies and tools stay consistent across the network, and it can be managed from HPE Aruba Networking Central. A mounting kit is included and the switch has a limited lifetime warranty.

Specifications

Technical specifications
Part numberR8N89B
Ports
Access ports12 x 10/100/1000BASE-T RJ-45, PoE+ Class 4
Uplink ports2 x 1G SFP
Management ports1 x USB-C console, 1 x USB Type-A
Power
PoE budget139 W
Network
Switching capacity32 Gbps; 23.8 Mpps
MAC address table8,192 entries; 12.38 MB packet buffer
Routing table512 IPv4 / 512 IPv6 unicast routes; 16 SVIs
Management
Operating system / managementAOS-CX; CLI, SNMP, RMON, HPE Aruba Networking Central; RADIUS, TACACS+, SSH
Physical
Form factor1U compact, rack or wall mount (mounting kit included)
Dimensions1.7 x 10 x 10 in (4.3 x 25.4 x 25.4 cm, H x W x D)
WarrantyLimited lifetime warranty (manufacturer)
