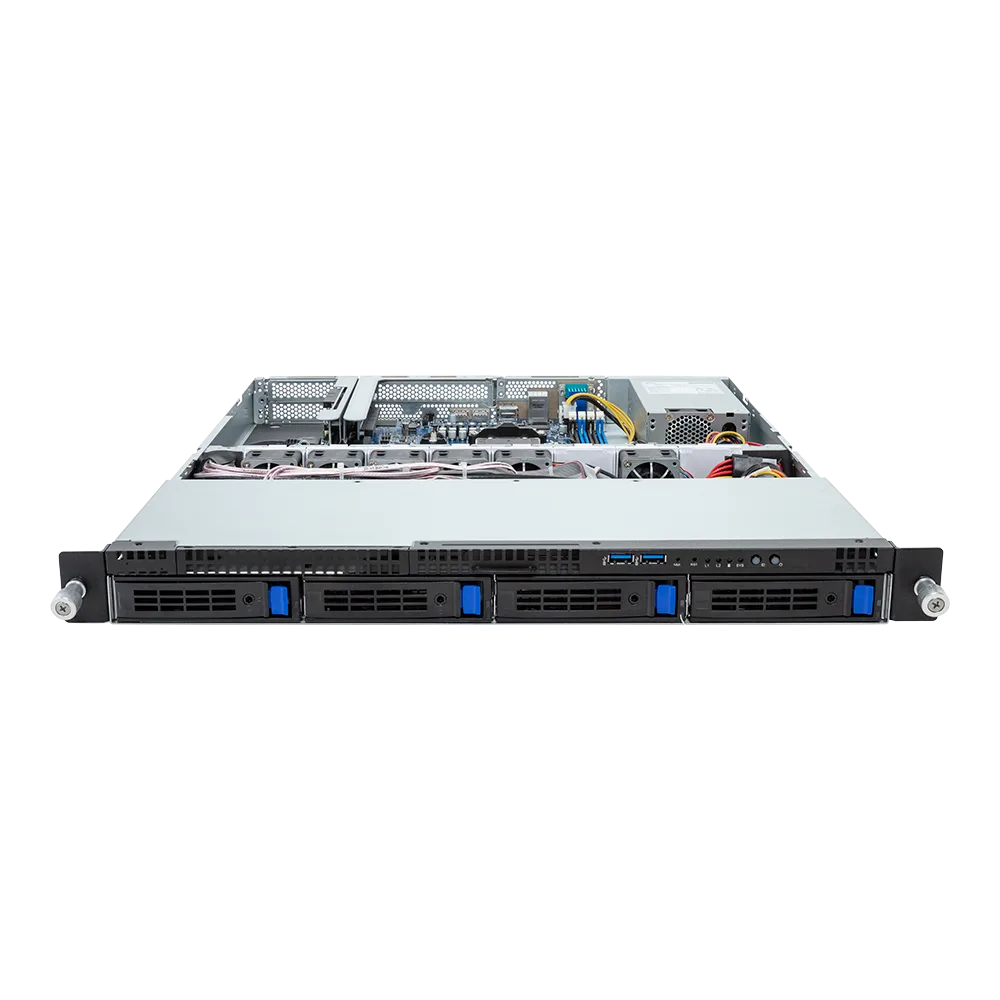

GIGABYTE R123-C00-AA01 1U AM5 Rack Server Barebone for AMD EPYC 4004/4005 & Ryzen
by
Entry 1U single-socket AM5 server barebone: 4 DDR5 ECC UDIMM slots, 4 SATA hot-swap bays, Gen5 x16 slot, dual 1GbE, 400W Gold PSU.
$782.59
SKU R123-C00-AA01 · 30-day returns
The GIGABYTE R123-C00-AA01 is an affordable 1U rack server barebone using the AMD AM5 socket and B650E chipset. It accepts AMD EPYC 4005/4004 server processors as well as Ryzen 9000/7000 desktop chips up to 105W TDP.
Four DDR5 UDIMM slots in dual-channel configuration support both ECC and non-ECC memory. Storage comes from four 3.5"/2.5" SATA hot-swap bays with RAID 0/1/10, plus one internal PCIe Gen4 M.2 slot for a boot drive.

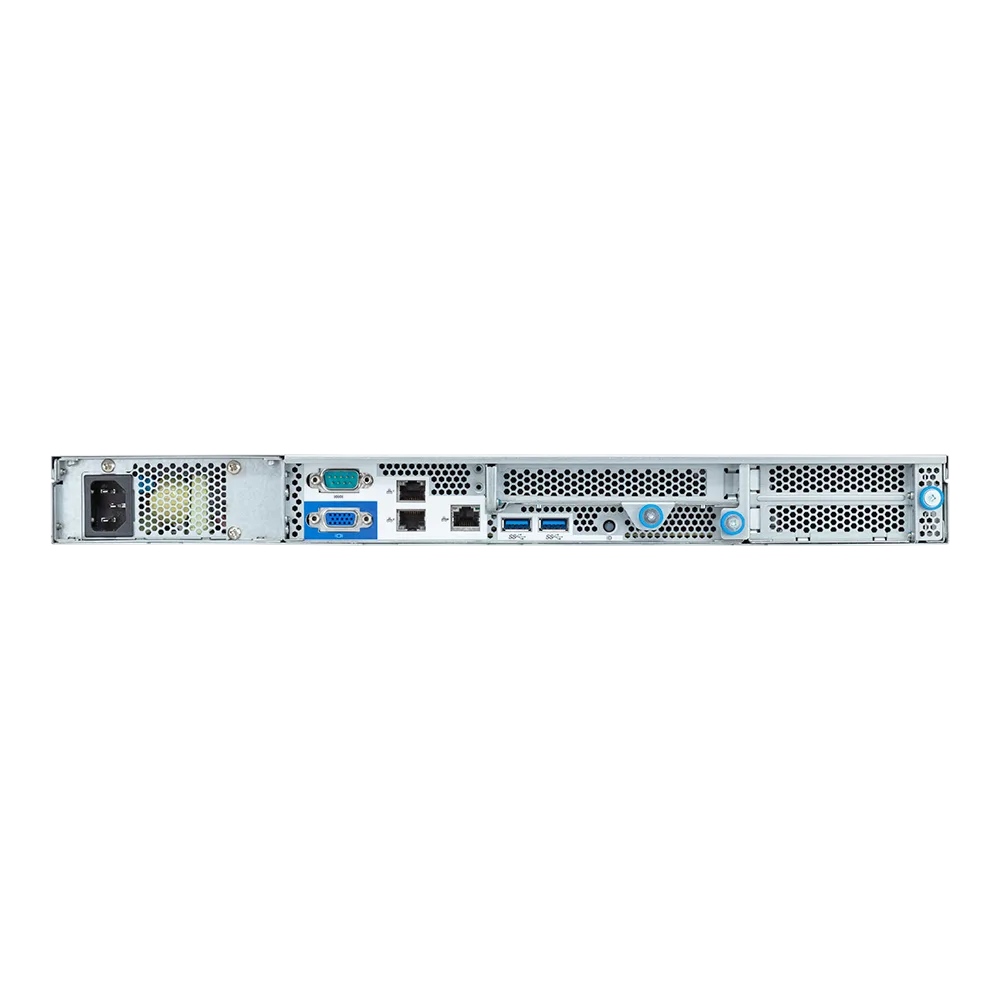

• 1 x FHHL PCIe Gen5 x16 slot and 2 x low-profile PCIe Gen4 x4 slots • 2 x 1GbE (Broadcom BCM5720) plus dedicated management LAN • ASPEED AST2600 BMC with VGA output • Single 400W 80 PLUS Gold PSU (500W option for 75W GPUs)
With a short 536 mm depth it suits small server rooms, branch offices, web hosting and lightweight virtualisation.
Shipping is charged by the number of items in your order, at the same rates for every destination, and the exact amount is shown at checkout before you pay. Orders ship within 1 business day.
Not happy? Return it within 30 days for a full refund, even if opened.
Specifications
| Part number | R123-C00-AA01 |
|---|---|
| General | |
| Form factor | 1U rack, barebone |
| Dimensions (W x H x D) | 430 x 43.5 x 536 mm |
| Net / gross weight | 13.87 kg / 16 kg |
| Processor | |
| CPU support | AMD EPYC 4005/4004, Ryzen 9000/7000; single socket, TDP up to 105W |
| Socket / chipset | 1 x AM5 / AMD B650E |
| Memory | |
| Memory | 4 x DDR5 UDIMM slots, dual channel, ECC and non-ECC |
| Storage | |
| Front bays | 4 x 3.5"/2.5" SATA hot-swap; RAID 0/1/10 |
| Internal M.2 | 1 x M.2 (2242/2280) PCIe Gen4 x4 |
| Expansion | |
| PCIe slots | 1 x FHHL PCIe Gen5 x16, 2 x LP PCIe Gen4 x4 |
| Networking | |
| LAN | 2 x 1Gb/s (Broadcom BCM5720) + 1 x management LAN |
| Power | |
| Power supply | Single 400W 80 PLUS Gold (optional 500W) |
| Warranty | 3-year limited parts and 3-year labor (as stated on the Newegg listing) |
