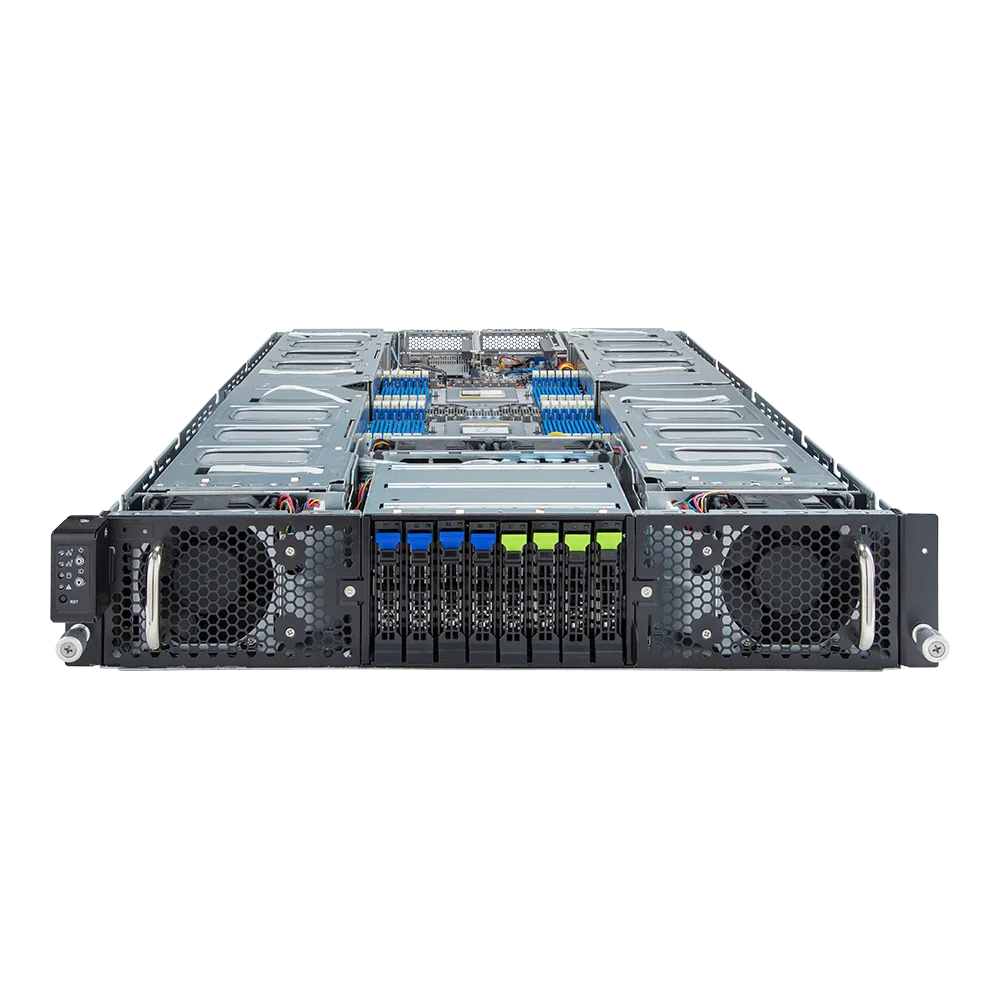

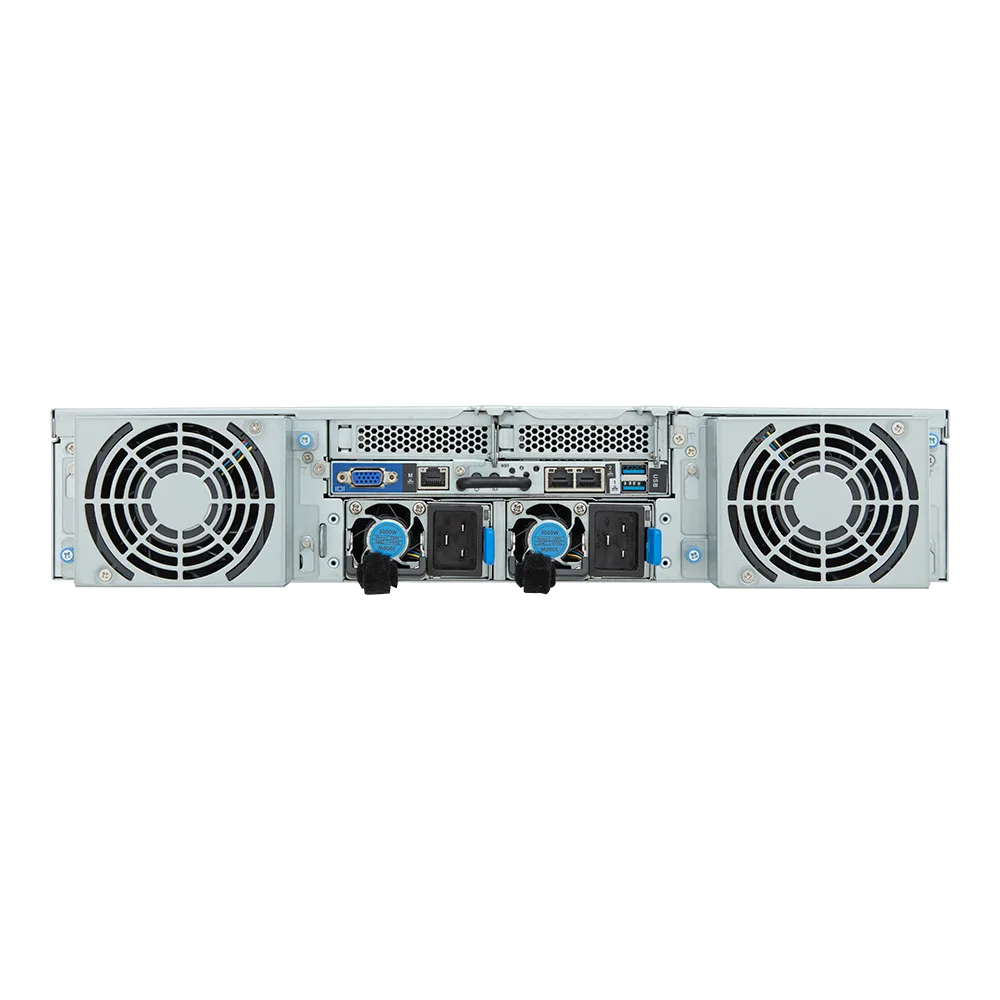

GIGABYTE G293-Z42-AAP1 2U Dual AMD EPYC 9004 8-GPU HPC/AI Server Barebone

Data center · Enterprise network · Rack-mount

GIGABYTE G293-Z42-AAP1 2U Dual AMD EPYC 9004 8-GPU HPC/AI Server Barebone

by

2U dual EPYC 9004 GPU barebone: eight FHFL Gen5 x16 GPU slots via PCIe switches, 24 DDR5 slots, 2 x 10GbE, dual 3000W Titanium PSUs.

$6,562.99
In stock

SKU G293-Z42-AAP1 · 30-day returns

The GIGABYTE G293-Z42-AAP1 fits eight double-width PCIe Gen5 GPUs into just 2U of rack space. Two Broadcom PEX89048 PCIe switches fan out the GPU slots, which helps peer-to-peer traffic between accelerators.

The host side runs two AMD EPYC 9004 processors (SP5) with 24 DDR5 RDIMM slots on 12 channels per CPU.

• 8 x FHFL PCIe Gen5 x16 GPU slots (max card size 285 x 111.5 x 39.5 mm) plus 2 x low-profile Gen5 x16 slots for NICs or DPUs • 4 x 2.5" Gen5 NVMe/SATA/SAS and 4 x 2.5" SATA/SAS hot-swap bays • 2 x 10GbE (Broadcom BCM57416) and management LAN • Dual 3000W 80 PLUS Titanium redundant power

A dense platform for AI inference farms, rendering, VDI and HPC clusters. Supplied as a barebone; GPUs, CPUs, memory and drives are not included.

Specifications

Technical specifications
Part numberG293-Z42-AAP1
General
Form factor2U rack GPU server, barebone
Dimensions (W x H x D)448 x 87.5 x 800 mm
Net / gross weight44.7 kg / 47 kg
Processor
CPU supportDual AMD EPYC 9004, TDP up to 210W (cTDP 240W at 30°C ambient)
Socket2 x LGA 6096 (Socket SP5)
Memory
Memory24 x DDR5 RDIMM slots, 12 channels per CPU, up to 4800 MT/s
GPU
GPU slots8 x FHFL PCIe Gen5 x16 via 2 x Broadcom PEX89048 switches
Expansion
Other slots2 x LP PCIe Gen5 x16
Storage
Front bays4 x 2.5" Gen5 NVMe/SATA/SAS + 4 x 2.5" SATA/SAS hot-swap
Networking
LAN2 x 10Gb/s (Broadcom BCM57416) + 1 x management LAN
Power
Power supplyDual 3000W 80 PLUS Titanium, redundant
Cooling
System fans8 x 80x80x38 mm
Warranty3-year limited parts and 3-year labor (as stated on the Newegg listing)
