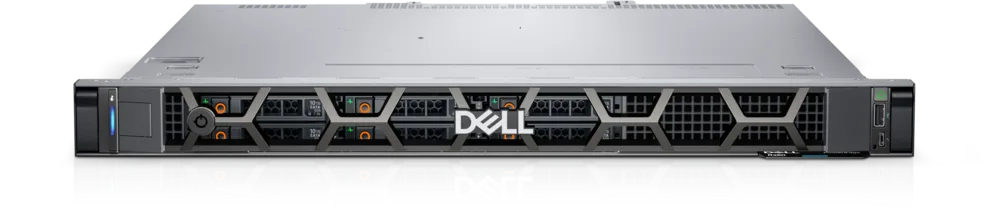

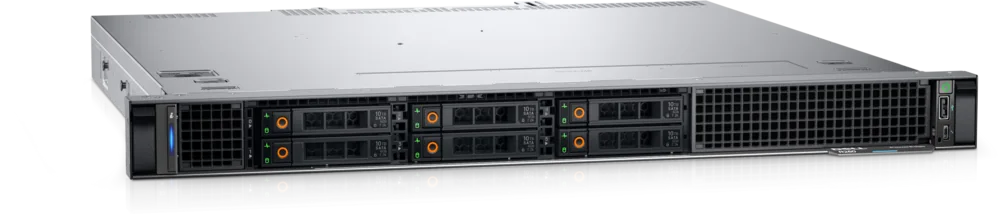

Dell PowerEdge R260 1U Rack Server

Small business · Enterprise network · Rack-mount

Dell PowerEdge R260 1U Rack Server

by

Short-depth 1U rack server with Intel Xeon E-2434, 32 GB DDR5 ECC and a 1 TB SATA drive for entry-level rack workloads.

$4,789.01
In stock

SKU DELL-POWEREDGE-R260 · 30-day returns

The PowerEdge R260 is a compact single-socket 1U server with a shallow chassis (about 43 cm deep with the cabled power supply and no bezel), so it fits the short network racks and wall cabinets common in branch offices and retail sites.

Dell's starting configuration pairs an Intel Xeon E-2434 (4 cores, 8 threads, 3.4 GHz) with one 32 GB DDR5 ECC UDIMM, a 1 TB 7,200 rpm SATA hard drive in a cabled 3.5-inch bay and a 450 W Platinum power supply.

• Four DDR5 UDIMM slots, up to 128 GB in total • Two cabled 3.5-inch bays in this chassis; a six-bay 2.5-inch hot-plug version is also offered • Two embedded 1 GbE ports and a dedicated iDRAC9 port • Up to two low-profile PCIe Gen4 slots (riser not included in the base build)

A practical choice for a domain controller, DNS/DHCP, a network security appliance or small web services. Rack rails are not included in the base price.

Specifications

Technical specifications
Processor
CPU (as priced)Intel Xeon E-2434, 4 cores / 8 threads, 3.4 GHz, 12 MB cache, 55 W
Supported processors1 x Intel Xeon 6300 series, Xeon E-2400 series or Pentium G7400/G7400T
Memory
Installed memory1 x 32 GB DDR5 UDIMM ECC, 5600 MT/s
Memory slots4 x DDR5 UDIMM slots, up to 128 GB
Storage
Installed drive1 x 1 TB SATA 6 Gb/s 7.2K rpm 3.5-inch HDD (cabled)
Chassis / bays3.5-inch chassis with up to 2 cabled drives, software RAID
Network
Embedded NIC2 x 1 GbE LOM
Ports
PCIe slotsUp to 2 x PCIe Gen4 low profile (requires riser; none in base build)
Power
Power supply1 x 450 W Platinum cabled PSU, non-redundant
Management
Remote managementiDRAC9 Basic
Physical
Form factor1U rack
Dimensions (H x W x D)42.8 x 482.0 x 426.6 mm (cabled PSU, without bezel)
WeightUp to 9.45 kg (3.5-inch drives, cabled PSU, fully populated)
Dell order codepe_r260_tm_vi_vp_sb
WarrantyDell Basic Hardware Service, Next Business Day, 12 months
